FLEXA Grey

General information

Method

Material type

TPU

Dedicated for

Lisa, Lisa PRO, Lisa X, NILS 480

Software

Sinterit Studio Basic

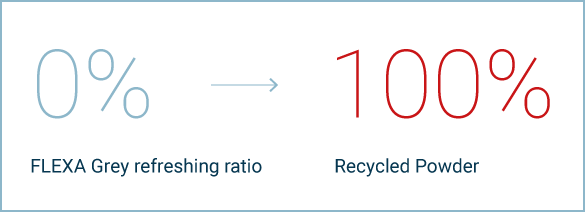

Material refreshing ratio¹

0² %

Nitrogen needed

Color

Grey

Mechanical properties

Tensile Strength

3.7³ MPa

PN-EN ISO 37:2007

Elongation at Break

136 %

PN-EN ISO 37:2007

Shore hardness in type A scale

70 / 90⁴

PN-EN ISO 868:2005

Thermal properties

Melting point

160 °C

Internal procedure

Softening point (Vicat method type A50)

67.6 °C

PN-EN ISO 306:2014-02

1 Refresh ratio is the amount of refreshing powder that is required to be mixed after the printing with unsintered material.
2 Flexa materials has 100 [%] of usability. Although to keep the parameters of printouts as high as possible, we recommend adding 10% of fresh powder each time
3 It might need additional refresh with 50% in case of drop of surface quality (every few to over a dozen printouts).
4 Depending on printing settings and the design

Information provided within this document shows values for reference and comparison only. Parameters presented in this specification are subject to change without notice. Final part properties may vary based on a printed part design and orientation, material handling as well as printing environment (humidity and temperature). The manufacturer is responsible for validation whether the printout is accurate and fit for the intended purpose.

FULL SPECIFICATION SAFETY SHEET

Compatible with:

Maurice Briggs

Director at Lazerthrust

Sinterit LISA is the most accessible means to produce precise constraint-free solutions to modern problems. The technology does what it says on the tin and the team at Sinterit is dedicated to working with their customers to achieve their objectives.

Joshua Rosen

ECA Medical

One of the main benefits of SLS is the ability to print complex geometry in quick succession to do rapid prototyping.

SEE CASE STUDY

Peter Benthues

H. Gautzsch Firmengruppe

For a company at the beginning of an investigation, support from, and discussion with the technology experts is extremely beneficial. The LISA is one of the few economically feasible solutions in the first stages of any AM Strategy. At lower volumes, it is a perfect solution.

SEE CASE STUDY

Lluís Llenas

Regner

The FFF and SLA parts are a good choice to get a physical impression of the designs and to assemble rough prototypes. But when it comes to producing reliable prototypes to be verified in our fatigue tests or to send functional samples to our customers for validation, SLS is the only acceptable choice.

SEE CASE STUDY

Comparison table

Rigid
Elastic

PA12 Smooth

PA11 Onyx

PA 11 ESD

PA 11 CF

Cost-efficent rigid polyamide. Best surface quality

Great mechanical and impact resistance. High elongation at break

ESD material for cases. Bio-sourced material

One of the strongest and most versatile materials available on the powder market dedicated to SLS printing technology

KEY FEATURES

Material base

Polyamide 12

Polyamide 11

Intended for

Lisa, Lisa Pro, Lisa X

Lisa Pro

Software

Sinterit Studio Basic

Sinterit Studio Advanced

FUNCTIONS

Stiff/rigid

Non-rigid / durable-tough

High-temperature resistance

High elongation

High-impact strength

Surface Finish

Color

Navy Grey

Black

Grey

Black

APPLICATIONS

Production parts

Snap-fits / Living Hinges

Automotive design

Aerospace parts and ducting

Medical applications

Jigs / fixtures / tools

Visual aid

GENERAL PROPERTIES

Refresh Ratio¹

22%

33%

60%

40%

Nitrogen needed

Yes

MECHANICAL PROPERTIES

Tensile Strength

32 MPa

48 MPa

46 MPa

81 [MPa]

Tensile modulus (Young)

1470 MPa

1680 MPa

1850 MPa

2950 [MPa]

Flexural Strength

47 MPa

62 MPa

56 MPa

100 [MPa]

Flexural Modulus

1160 MPa

1420 MPa

1240 MPa

3050 [MPa]

Elongation at Break

10%

55%

27%

24,5%

Impact strength Charpy method – unnotched

179+

114

Shore Hardness in scale

D74

D76

D81

THERMAL PROPERTIES

Melting point

185 °C

200 °C

204 °C

197 °C

Heat deflection temperature (HDT A/B)

68 °C

47 °C

103 °C / 171 °C

170 °C / 191 °C

SEE POWDER

Flexa Grey

Flexa Soft

Flexa Bright

TPE

Rubber material for prototypes. Standard material for TPU parts.

Softest material for SLS. Pleasant-to-touch rubber

Visual prototypes can be dyed. Best elongation rubber

Can be made water/air tight. Final products that can be skin-touch certified

KEY FEATURES

Material base

TPU

Block Poliester

Intended for

Lisa, Lisa Pro, Lisa X, NILS 480

Lisa Pro, Lisa X, NILS 480

Software

Sinterit Studio Basic

Sinterit Studio Advanced

FUNCTIONS

Elastomeric / rubber-like

High elongation

Surface Finish

Color

Grey

Light Grey

Oyster White

Grey

APPLICATIONS

Production parts

Automotive design

Aerospace parts and ducting

Medical applications

Gaskets, seals and hoses

Footwear

Visual aid

GENERAL PROPERTIES

Refresh Ratio¹

0%²

10%⁴

Nitrogen needed

MECHANICAL PROPERTIES

Tensile Strength

3.7 MPa⁴

1.8 MPa

10 MPa

6 MPa

Elongation at Break

136%

137%

318%

196%

Shore Hardness in scale

A70/A90³

A45/A58³

A79

A90

THERMAL PROPERTIES

Softening point (Vicat method type A50, 10N)

67.6 °C

60.0 °C

75.1 °C

Melting point

160 °C

150 °C

160 °C

190 °C

SEE POWDER

1 Refresh ratio is the amount of refreshing powder that is required to be mixed after the printing with unsintered material.
2 Flexa materials has 100 [%] of usability. Although to keep the parameters of printouts as high as possible, we recommend adding 10% of fresh powder each time
3 Depending on printing settings and the design
4 It might need additional refresh with 50% in case of drop of surface quality (every few to over a dozen printouts).

Information provided within this document are average values for reference and comparison only. Parameters presented in this specification are subject to change without notice. Final part properties may vary based on printed part design, print orientation and material handling.

Good

Better

Best

FAQ

How should I store the printing powder?

Store the powder at room conditions ( ~23°C and 50% humidity – the lower humidity the better)
Always store the material in a sealed dry box/container.
Do not leave the container open.
Clean the machine directly after printing and store the material immediately after removing the print cake.
Do not let the powder stay in the printer for more than a couple hours.
Put a few silicone absorbers in the container (but don’t add them to the printer)

Contact Sinterit support with your questions.

How are the powders different?

The differences between the powders are described in the table below.

SEE COMPARISON TABLE

What is the difference between “Fresh” powder and “Starter powder”?

Starter powder is basically a print-ready powder.

In Sinterit we distinguish three powder conditions: print-ready, used, and fresh.

Used is a type of powder that you get after the printing, present in overflow bin or remaining after printout cleaning.

Fresh is a type of powder that is being used for refreshing the powder. After mixing this powder with used powder you will receive print-ready.

Print-ready is a type of powder that you can simply pour into the printer and start printing.

Although printing using Fresh is possible it’s not economically optimal therefore Sinterit printers are optimized for using a refreshed (print-ready) powder.

Why do I need an ATEX vacuum cleaner to clean powder?

SLS polyamide powder used for 3D printing is considered particulate matter because of its size. Polyamide powder particles are generally 40 micrometers or smaller. If vacuumed in an ordinary vacuum cleaner, the powder could cause an explosion.

Such materials are subject to labor regulations on air quality and occupational safety. The procedures call for appropriate maintenance of powder at work. Only certified industrial vacuum cleaners should be used to clean such materials. More information about the ATEX Vacuum cleaner can be found here.

Contact Sinterit support with your questions.
