Industries and applications

NILS 480
industrial SLS 3D printer

An industrial SLS 3D printer ensuring more automated work and the best ROI on the SLS technology market.

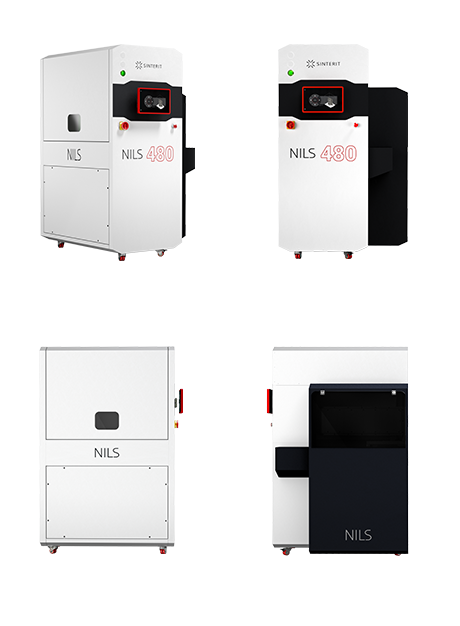

NILS 480 industrial 3D printer
With the reinvented productivity in the NILS 480 you can print much more, continously.
3d printed element with industrial 3d printer NILS 480
engineer using industrial 3d printer nils 480

Key advantages of the NILS 480

automated systems of NILS 480 icon
Innovative automated systems
With its Continous Printing and Automatic Powder Dispensing Systems, you can do the same work much more efficiently. If you print a lot, these features really matter.


fast industrial 3d printing icon
Industrial
printing
speed
The NILS 480 is equipped with the Galvo laser scanning system. This means most printing jobs can be finished within 24 hours.
dimensions of industrial sls 3d printer nils 480
Industrial
build
size
The NILS 480 meets the industrial market standard for size, enabling you to print much more at lower prices per part.
roi on 3d printed element with nils 480 3d printer
Best ROI
on the SLS market
With the speed, build size and automated work the NILS brings, you achieve superior ROI in an industrial SLS printer – in as little as 40 days.

NILS 480 main features

  • Printout quality
  • SLS printout benefits
  • Open-system 3rd-party materials can be used and the 32 printing parameters can be modified

  • Open environment
  • Wide material range
Continuous Printing System
With this solution, fill the powder once and print two full beds or a few lower print beds. All of this without repeating the print preparation process and powder filling. How does the NILS do this? The previous bed automatically ejects, lifting a full cake to the cooling box. The printing bed comes back and another print automatically begins.
Easy operation
With automated systems, an effective ecosystem with post-processing, and easy material change, you can be sure the printing experience will be smooth and simple.
NILS 480 industrial 3D printer
Automatic Powder Dispensing System
Just fill the container with powder and let the printer manage the rest of the process. This is possible thanks to the special closed powder circuit, which circulates the powder and automates the powder dispensing. No manual work with powder is required until you receive the final print cake.
32 open printing parameters
Each of our materials has an optimized profile that allows you to gain the best quality and personalization. When you’re ready to modify or make your own profile for changing printout properties, the NILS’ 32 parameters can be adjusted.
Rigo Herold
Professor Dr.-Ing., Zwickau University in Germany

It was the best choice for me to fulfill all requirements: possibility to print complex structures, price, speed, reliability.

Maurice Briggs
Director at Lazerthrust

Sinterit LISA is the most accessible means to produce precise constraint-free solutions to modern problems. The technology does what it says on the tin and the team at Sinterit is dedicated to working with their customers to achieve their objectives.

Peter Benthues
H. Gautzsch Firmengruppe

For a company at the beginning of an investigation, support from, and discussion with the technology experts is extremely beneficial. The LISA is one of the few economically feasible solutions in the first stages of any AM Strategy. At lower volumes, it is a perfect solution.

Lluís Llenas
Regner

The FFF and SLA parts are a good choice to get a physical impression of the designs and to assemble rough prototypes. But when it comes to producing reliable prototypes to be verified in our fatigue tests or to send functional samples to our customers for validation, SLS is the only acceptable choice.

Walter Pucheanu
R&D Technician
Department of Chemical and Biological Engineering (CBI) / University of Erlangen–Nuremberg

The print quality of the Lisa PRO is impressive.

Sean Higgins
Nabson Inc.

In order to keep up with our production demand, we have been operating the Lisa PRO almost 7 days a week for the past couple of months, without incident, and produced over 1500 sleeves.

Only top quality 3D printing

Top printing quality is always our priority. Order a sample and touch it to instantly see-and feel-what we mean.

Technical specification

GENERAL
IR 30 [W]
Galvo
1285 x 1250 x 1840 [mm] (50.6 x 49.2 x 72.4 [in])
300 [kg] / 660 [lbs]
PRINTER PARAMETERS
435 [mm] / 17.1 [in]
200 x 200 x 330 [mm] / 7.9 x 7.9 x 13.0 [in]
0.075 – 0.175 [mm] / 0.003 – 0.006 [in]
up to 14 [mm/h] / up to 0.56 [in/h]
built-in
SOFTWARE
STL, 3MF, OBJ, 3DS, FBX, DAE
Microsoft Windows 10 or higher
Compatible materials
PA12 powder for NILS 480 3d printing machine
PA12 Smooth – available
Standard Prototyping
PA11 material
PA11 Onyx – available soon
Standard Prototyping
PA11 CF – available soon
Performance & Special Applications
PA11 ESD material
PA11 ESD – on demand
Special Applications
Polypropylene material for sls 3d printer
Polypropylene -available soon
Special Applications
Flexa Bright sls material for 3d printer
Flexa Bright – on demand
Flexible
sls 3d printing material
Flexa Soft – on demand
Flexible
Flexa Grey sls powder for 3d printing
Flexa Grey -available soon
Flexible
TPE sls powder for 3d printing
TPE – on demand
Flexible

Materials

Standard prototyping
sls materials for prototyping
Performance & Special Applications
per
Flexible
These industry leaders trust Sinterit

Resources

NILS 480 Brochure

What is an Open SLS 3D printer?

The temperature distribution is crucial in the Selective Laser Sintering printing process.

The 22 heating elements spread across four heating zones enable you to strictly control the temperature variations inside the printer. The resulting array of options for modifying and adjusting parameters allows you to optimize the printing process for developed materials, test new research methodologies, and receive top-quality printouts.

Technological solutions in the NILS 480

Sinterit Studio

Decidated software for all your needs
We developed our software in-house to be a user-friendly assistant for your pre-printing operations, including model positioning. It can also be used with the auto-packing function. In Sinterit Studio, you can also choose more advanced options and draw from open parameters.

Sample print prices

Material
Printer
Model
Material
Printer
Model
Full bed
Printing Costs

* The price quoted is for a single print, calculated for printing the entire chamber at a packing density of 15%.

Watch how we empower your innovation

We care

Meet our Customer Support Team. Our personal advisers ensure you don’t get automatic replies or wait in endless helplines. We provide personal contact and commitment in solving problems, providing training and technical consultancy to support your ideas.
Grzegorz Konwalinko
Grzegorz Konwalinko
Senior Support Specialist
+48 570 702 886
Adam Klimczak
Technical Support Specialist
+48 570 702 999

FAQ

How does the automated print cake removal work and does it automatically start the next build?

After the printing is finished, the cake leaves the cooling box, and then is cut off. This starts another process inside the machine.

Does the Sinterit Studio have a nesting feature?

Yes, Sinterit Studio has a built-in nesting feature.

Will the NILS 480 be manufactured and assembled in Poland?

Yes, the NILS 480 will be manufactured & assembled in Poland

Does the machine run on single-phase or three-phase power?

The machine runs on single-phase

Knowledge

Contact us via the form












    [lc_medium]

    Let us help you choose the best 3D printing solution

    We understand that choosing the right 3D printing technology can be a daunting task, even for professionals. That’s why we invite you to consult our advisors and ask as many questions as you need to. Our experts will help you choose the best technology for your applications, suggest the powders you will need, provide more information for specifications or tenders, or send you sample printouts demonstrating the features you’re looking for. Send a form and try to describe all your needs so we can be prepared when contacting you. Once we receive your message, we will contact you soon.
    Talk with our experts
    Mail: sales@sinterit.com
    Our advisors:
    Katarzyna Wcisło
    International Sales Specialist
    make an appointment
    Wojciech Kalina
    International Sales Specialist
    make an appointment
    Fill in the form













      Book a demo

      Click to make an appointment and learn more about our printers
      Application Engineer:
      Fill in the form







        Resources

        NILS 480 leaflet
        Check the latest leaflet
        DOWNLOAD









          Pricing

          Below there are approximate costs for some example models.
          Be aware that the quotation assumes that there is only one piece printed. In SLS technology, the cost per part will be much lower with a higher number of elements printed at once.
          • Flexible
          • Standard
          Model
          Dimensions
          PA12
          Smooth
          PA11
          Onyx
          Flexa
          Grey
          Flexa
          Bright
          Flexa
          Soft
          TPE
          Below
          Model volume:
          Model volume:
          Total print height:
          6.82 cm
          Dimensions:
          65 x 65 x 63 mm
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          Crank
          Model volume:
          28.12 cm^3
          Total print height:
          6.82 cm
          Dimensions:
          65 x 65 x 63 mm
          49,90 €
          49,90 €
          49,90 €
          49,90 €
          49,90 €
          49,90 €
          Derailleur
          Model volume:
          28.12 cm^3
          Total print height:
          6.82 cm
          Dimensions:
          65 x 65 x 63 mm
          71,80 €
          71,80 €
          71,80 €
          71,80 €
          71,80 €
          71,80 €
          Driller housing
          Model volume:
          28.12 cm^3
          Total print height:
          6.82 cm
          Dimensions:
          65 x 65 x 63 mm
          157 €
          157 €
          157 €
          157 €
          157 €
          157 €
          Model
          Dimensions
          PA12
          Smooth
          PA11
          Onyx
          Flexa
          Grey
          Flexa
          Bright
          Flexa
          Soft
          TPE
          Crank
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          Crank
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          Crank
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          Crank
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          Crank
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          Crank
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          Model volume:
          28.12 cm^3
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €
          51,30 €

          [contact-form-7 404 "Not Found"]

          Get a free sample box

          Universal joint + turbine
          The free samplebox contains two printouts made from PA12 Smooth. They are both movable designs, and each one is printed in one piece.

          These are examples showing high precision and freedom of design ensured by SLS technology.
          order free sample box
          Mamy też advanced samples orci varius natoque penatibus et magnis dis parturient montes, nascetur
          ridiculus mus. Aliquam id placerat nunc. Integer viverra, arcu vel feugiat viverra, dui purus sodales libero.
          SEE ADVANCED samples
