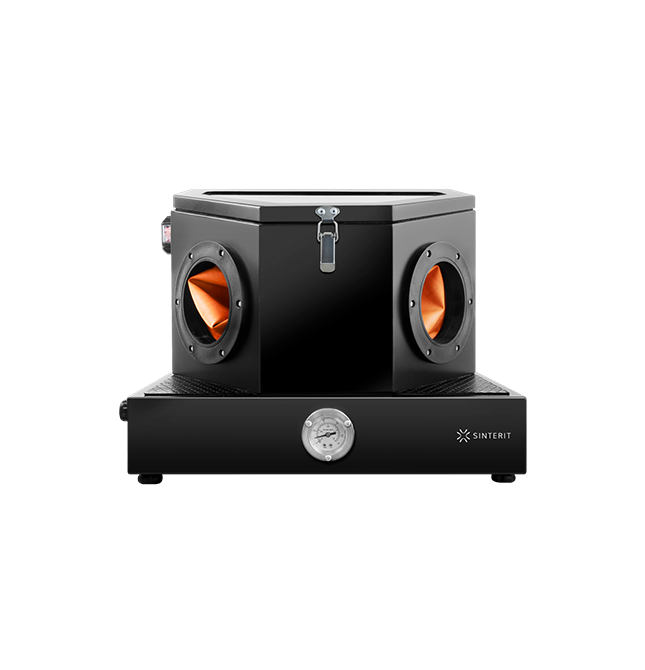

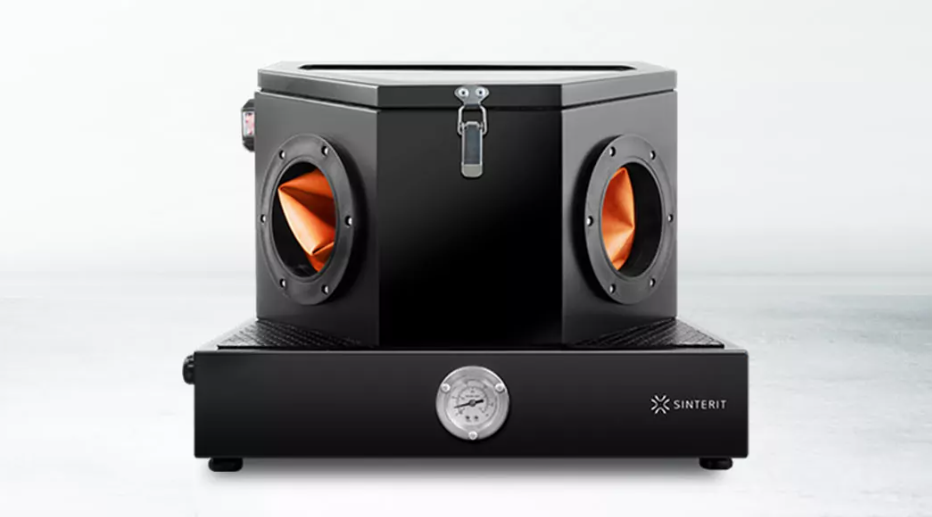

Sandblaster

HEPA filtration and full sealing maintain a dustless environment around the Sandblaster SLS and allow you to post-process while avoiding contact with the powder

Sandblaster SLS is compatible with the ATEX Vacuum Cleaner. Using a special vacuum environment, our unique system separates the abrasive and powder while also removing powder from the chamber

Smooth pressure regulation promotes thorough cleaning of even the smallest and most delicate prints.

The additional manual blasting gun ensures precision, while the wall-mounted blasting nozzle makes it possible to freely rotate objects.The low-mesh grill allows you to work with a series of prints while preventing small parts from getting inside the device.

Large working area: 410 x 310 x 200 [mm]

The industrial cabinet makes working on large prints more convenient and allows them to be conveniently rotated. The whole device is designed to ensure the most convenient work with SLS printouts from Sinterit SLS 3D printers.

Pressure regulation and metering

The built-in pressure meter will help you to set all work parameters precisely. Maintaining the right pressure is crucial particularly if you’re post-processing elements with tiny details.

This level of control ensures consistent results across every print, preserving delicate geometries without the risk of over-blasting or surface damage. Whether you’re cleaning complex lattice structures or preparing parts for final finishing, the Sandblaster SLS gives you the precision you need to maintain the integrity and appearance of your most detailed work.

Specification

Working area

410 x 310 x 200 [mm] (16,1 x 12,2 x 7,9 [in])

Max. pressure

125 [psi] / 8.62 [bar]

Coupling

DN 7.2

Max. abrasive material capacity

4.5 kg [9.9 lbs]

Dimensions

495 x 390 x 410 [mm] / 19.5 x 15.4 x 16.1 [in]

Weight

11.5 [kg] / 25.3 [lb]

Power

6 [W]

Input voltage

230 [V] / 50 [Hz] or 110 [V] / 60 [Hz]

Abrasive material

glass balls 200 [μm]

Required Air flow

300 L/min

Required Pressure

0.5 – 0.86 [MPa] / 5.0 – 8.6 [bar] / 87.0 – 124.7 [psi]

Full specification (PDF)

Sinterit-SANDBLASTER-SPECIFICATION-1.pdf

Sandblaster

Sandblaster SLS

Type

Manual

Working area

410 x 310 x 200 [mm] (16,1 x 12,2 x 7,9 [in])

675 x 450 x 415 [mm] (26.6 x 17.7 x 16.3 [in])

Max. pressure

0.86 MPa / 125 psi

5.0 – 8.6 [bar] / 72.5 – 125.0 [psi]

Coupling

DN 7.2

Dimensions

480 x 370 x 360 mm (18.9 x 14.5 x 14.1 in)

790 x 545 x 765 [mm] (31.1 x 21.5 x 30.1 [in])

Weight

15 [kg] (33 [lbs])

30.5 [kg] (67.1 [lbs])

Illumination

Power

6 [W]

Input Voltage

230 [V] / 50 [Hz] or 120 [V] / 60 [Hz]

110 / 230 [V] AC, 50/60 [Hz]
