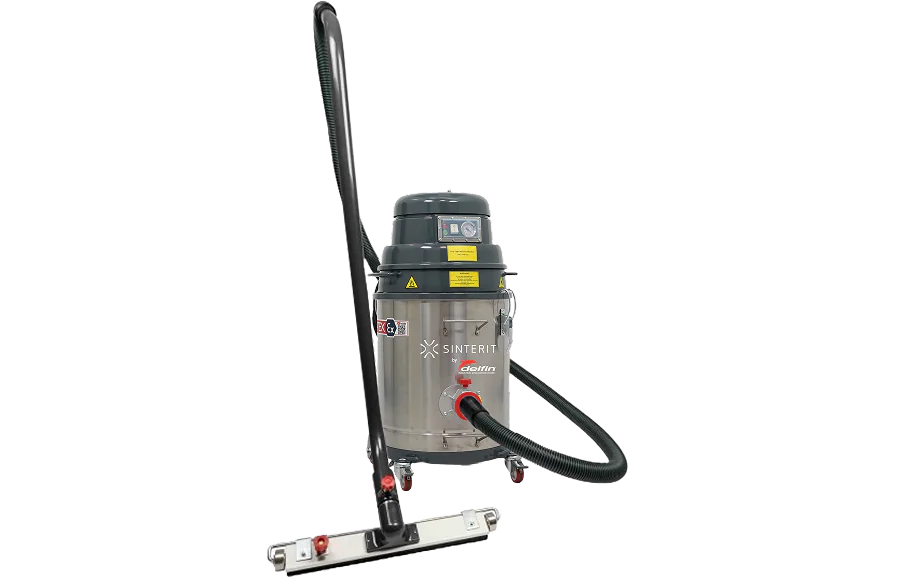

ATEX / Intertek Vacuum Cleaner

Clean your printer and collect unused powder in 10 minutes. Save time and money.

Save time and money. Get your printer ready for the next print in under 10 minutes. Use the ATEX Vacuum with powder separator not only for cleaning, but also to collect unsintered powder in a dedicated container and quickly prepare it for the next print.

With the ATEX Vacuum, clean your workspace with a few simple moves.

Eliminate the mess in your workplace and recover 100% of your powder. With the ATEX Vacuum you can gather powder spilled during printout cleaning – both from the workshop and from the printout surface. And it’s 100% safe.

Minimise your workflow: collect the powder and clean your workspace with a single device.

With the help of the Sinterit separator automatically transfers collected powder into the dedicated container, removing the need for manual transfers. The powder can then be easily poured into the Sinterit Sieve. Or close the container and leave the powder for further processing.

Details

Specs

Dimensions

440 x 420 x 780 [mm] (17.3 x 16.5 x 30.7 [in])

Total weight

25 [kg] (55 [lbs])

Power

1.2 [kW]

Voltage

230 [V] AC, 50/60 [Hz] or 110 [V] AC 50/60 [Hz]

Noise level

(EN ISO 3744) 77 [dB(A)]

Max. air flow

(rate) 215 [m3/h]

Suction inlet

50 [mm]

Filter type

Star, M class filtration

Capacity of the collection unit

40 L

ATEX zones

Z22 or INTERTEK certification

Package contents

ATEX Vacuum Cleaner + set of accessories + powder separator + manuals

Full specification (PDF)

Sinterit-Atex-Vacuum-cleaner-SPECIFICATION-1.pdf

ASK FOR MORE DETAILS

ATEX for safety

SLS powders are not themselves explosive, there is a risk of explosion when they are mixed with air, just like a mixture of flour and air. This is why standard vacuum cleaners without ATEX certification should be avoided at all costs. Most vacuum cleaners, even professional ones used by cleaning companies, are not made to work with low-graduation powder. If exposed to sparks, airborne powder in an ordinary vacuum cleaner may cause an explosion. Sinterit’s ATEX Vacuum Cleaner is designed to work with explosive mixtures. In addition to being properly certified, it comes with grounding, a specially designed filter, anti-static hoses, and electrostatic nozzles.

Philippe Bendel

Additive Manufacturing Development Leader – Somfy

The main reason Somfy reached out for the SLS technology from Sinterit was productivity. Printing many pieces in one batch was a game-changer

SEE CASE STUDY

Alec Bialek

Head of Jetson’s R&D

When we look at Lisa’s line of printers, or Sinterit at general compared to other companies, the two major things that we liked were the materials, that are open source, so we are not locked into one brand […]. We are able to look around the market and use a material that works best for the part.

SEE CASE STUDY

Rigo Herold

Professor Dr.-Ing., Zwickau University in Germany

It was the best choice for me to fulfill all requirements: possibility to print complex structures, price, speed, reliability.

Maurice Briggs

Director at Lazerthrust

Sinterit LISA is the most accessible means to produce precise constraint-free solutions to modern problems. The technology does what it says on the tin and the team at Sinterit is dedicated to working with their customers to achieve their objectives.

Peter Benthues

H. Gautzsch Firmengruppe

For a company at the beginning of an investigation, support from, and discussion with the technology experts is extremely beneficial. The LISA is one of the few economically feasible solutions in the first stages of any AM Strategy. At lower volumes, it is a perfect solution.

SEE CASE STUDY

Lluís Llenas

Regner

The FFF and SLA parts are a good choice to get a physical impression of the designs and to assemble rough prototypes. But when it comes to producing reliable prototypes to be verified in our fatigue tests or to send functional samples to our customers for validation, SLS is the only acceptable choice.

SEE CASE STUDY

Walter Pucheanu

R&D Technician
Department of Chemical and Biological Engineering (CBI) / University of Erlangen–Nuremberg

The print quality of the Lisa PRO is impressive.

SEE CASE STUDY

Sean Higgins

Nabson Inc.

In order to keep up with our production demand, we have been operating the Lisa PRO almost 7 days a week for the past couple of months, without incident, and produced over 1500 sleeves.

SEE CASE STUDY

What sets an ATEX vacuum cleaner apart from other devices of this type?

The ATEX / Intertek Vacuum cleaner not only allows for cleaning the printer, workshop, or print surface: thanks to the presence of a special separator, the collected powder is directed to a dedicated container and can be used again. Additionally, the ATEX certification confirms that the Sinterit vacuum cleaner significantly increases work safety, as it is designed to work with explosive mixtures.

Does the ATEX certificate of the Sinterit vacuum cleaner mean that the powders used in the printers are explosive mixtures?

No, the powders used in SLS technology are not explosive. However, there is a certain risk when they are mixed with air. If exposed to sparks, airborne powder in a regular vacuum cleaner can cause an explosion.
